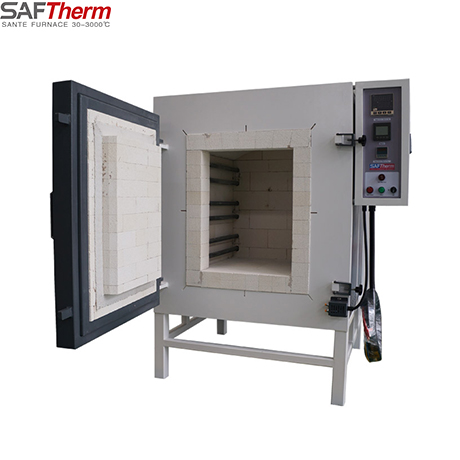

1400℃ Manual Door Large Size Industrial Furnace

The 1400℃ manual door industry furnace is used for quenching, tempering, normalizing, annealing and other heat treatment processes of metal materials, and can also be used for sintering of non-metallic ceramic materials. It is suitable for small batch production and tests in laboratories and factories.

Features

Furnace Shell

1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion.
2. Strong metal frame shell structure, low furnace surface temperature.
3. The side-opening furnace door structure, the left hinge is fixed, and the operation is convenient.

Refractory

Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption

Heating System

1. The high-quality SIC heating element is safely and firmly installed on both sides of the furnace, which is energy-saving and efficient, and has a long service life
2. Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace
3. The silicon carbide bottom plate protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.

Temperature Control Panel

1. PID with SCR control mode, precise temperature control.
2. Internationally standardized S-type platinum-rhodium thermocouple, with a temperature measurement range of 0-1600 ℃ and a long service life.
3. The furnace door is equipped with a door-opening power-off safety protection switch.

Program Controller

1. Advanced controllers that meet complex process requirements
2. Simple operation, flexible programming
3. Programmable 30 segments for a single curve
4. Over temperature and fault alarm, automatic safety protection
5. Optional manual air intake and automatic clamshell exhaust
6. Furnace rapid cooling control system can be selected to realize rapid cooling within the furnace temperature of 400°C

Technical Parameter

Model | STD-36-14 | STD-45-14 | STD-64-14 | STD-80-14 | STD-96-14
Chamber size（W xD xH）mm | 300 x400x300 | 300 x500x300 | 400x400x400 | 400x500x400 | 400 x600x400
Max temperature | 1400℃
Working Temperature | 1300℃
Power supply | 380V/12KW | 380V/15KW | 380V/18KW | 380V/20KW | 380V/21KW
Heating element |  High quality Silicon carbide Rod (SIC) heater
Chamber material | High temperature 1500 type polycrystal alumina ceramic fiber plate
Temp. precision | ±1℃
Thermocouple | S type platinum rhodium thermocouple
Temp controller | SHIMADEN (Japan) brand intelligent microcomputer PID controller can program 30 segments
Heating rate |  Suggest 1-15℃/min for longer life using
Furnace structure | Furnace & temperature control integrated structure
Equipment protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken thermocouple in the working process, and the protection action will be completed automatically
Safety protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Furnace shell |  High-quality cold-rolled steel plate CNC processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying
Quality Certification | ISO9001   CE    SGS   TUV
Standard packing | 1. furnace body  2. Temperature controller  3. power cable 3 meters   4. Thermocouple 1 pc  5. operation manual  6. one pair of crucible tongs  7. one pair of high temperature gloves

AStandard ccessories

1. Furnace body | 1 set
2. Temperature controller | 1
3. Power cord 3 meters | 1
4. Thermocouple | 1
5. Instruction manual | 1
6. Crucible pliers | 1
7. High temperature gloves |  1 pair
