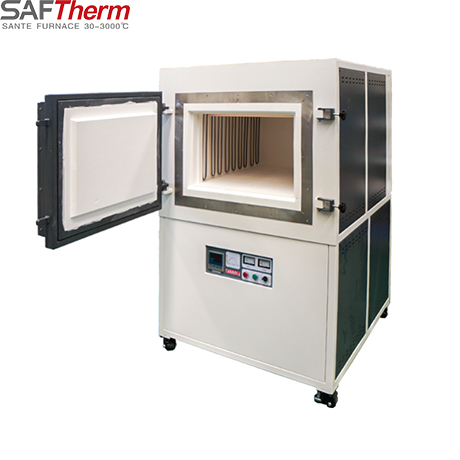

1700℃ manual door industrial furnace

1700℃ manual door industrial furnace is used for high-temperature sintering of electronic ceramics, magnetic materials, functional ceramics, structural ceramics, targets and composite materials, and suitable for small batch production and testing in laboratories and factories.

Features

Furnace Shell

1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion.
2. Strong metal frame shell structure, low furnace surface temperature.
3. The side-opening furnace door structure, the left hinge is fixed, and the operation is convenient.

Refractory

Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption

Heating System

1. High-quality MoSi2 heating element, safely and firmly installed on both sides of the furnace, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
2. Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace

Temperature Control Panel

1. PID and SCR control mode, precise temperature control
2. International standard B-type platinum-rhodium thermocouple, temperature range 50-1800 ℃, long service life
3. The furnace door is equipped with a door-opening power-off safety protection switch

Program Controller

1. Advanced controllers that meet complex process requirements
2. Simple operation, flexible programming
3. Programmable 30 segments for a single curve
4. Over temperature and fault alarm, automatic safety protection
5. Optional manual air intake and automatic clamshell exhaust
6. Furnace rapid cooling control system can be selected to realize rapid cooling within the furnace temperature of 400°C

Technical Parameter

Model | STD-36-17
Chamber size（W xD xH）mm | 300 x300x400
Max temperature | 1700℃
Working Temperature | 1600℃
Power supply | 380V/20KW
Heating element | High quality Molybdenum Disilicide (MoSi2) heater
Chamber material | High temperature 1800 type polycrystal alumina ceramic fiber plate
Temp. precision | ±1℃
Thermocouple | B type platinum rhodium thermocouple
Temp controller | Intelligent microcomputer PID temperature controller, SCR/SSR control, PID parameter self-tuning function; programmable 30 segments, program heating, program heat preservation, program cooling
Heating rate | ≤20 °C/min ( suggest 10°C/min for longer life using of furnace )
Furnace structure | Furnace & temperature control integrated structure
Equipment protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken thermocouple in the working process, and the protection action will be completed automatically
Safety protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
Furnace shell |  High-quality cold-rolled steel plate CNC processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying
Quality Certification | ISO9001   CE    SGS   TUV
Standard packing | 1. furnace body  2. Temperature controller  3. power cable 3 meters   4. Thermocouple 1 pc  5. operation manual  6. one pair of crucible tongs  7. one pair of high temperature gloves

AStandard ccessories

1. Furnace body | 1 set
2. Temperature controller | 1
3. Power cord 3 meters | 1
4. Thermocouple | 1
5. Instruction manual | 1
6. Crucible pliers | 1
7. High temperature gloves |  1 pair
